× DataGrid for Qt.C++

Make Grid header editable

1 year 9 months ago #1 by Stephanie
Hi,

Could you please let me know the way to make grid headers editable? I have attached an image file to demonstrate the expected behavior. Please find same.
Attachments:

Please Log in or Create an account to join the conversation.

More
1 year 8 months ago #2 by Stephanie
Replied by Stephanie on topic Make Grid header editable
Hi,

Any updates?

Please Log in or Create an account to join the conversation.

More
1 year 8 months ago - 1 year 8 months ago #3 by Developer Machines
For this purpose you need implement Qtitan::GridTableColumnEditor and assign it to Qtitan::GridTableColumn. See example below:

main.cpp
#include <QApplication>
#include "window.h"

int main(int argc, char *argv[])
{
    QApplication a(argc, argv);
    Window w;
    w.show();
    return a.exec();
}

window.h
#ifndef MAINWINDOW_H
#define MAINWINDOW_H

#include <QMainWindow>
#include <QtitanGrid.h>

class Window : public QMainWindow
{
    Q_OBJECT
public:
    Window();
 private:
    Qtitan::Grid* m_grid;
};

class MyColumnEditor : public Qtitan::GridTableColumnEditor
{
    Q_OBJECT
public:
    MyColumnEditor();
    virtual QWidget* createEditorWidget(Qtitan::GridColumnBase* column);
private Q_SLOTS:
    void editChanged(const QString &);
private:
};
#endif // MAINWINDOW_H

window.cpp
#include <QStandardItemModel>

#include "window.h"

Window::Window()
: QMainWindow()
{
    setWindowTitle(tr("QtitanDataGrid Demo"));
    setGeometry(200, 250, 1200, 800);

    m_grid = new Qtitan::Grid();
    m_grid->setViewType(Qtitan::Grid::TableView);
    Qtitan::GridTableView* view = m_grid->view<Qtitan::GridTableView>();
    view->options().setColumnHeight(35);

    QStandardItemModel* model =  new QStandardItemModel(4, 4);
    for (int row = 0; row < 4; ++row)
    {
        for (int column = 0; column < 4; ++column)
        {
            QStandardItem *item = new QStandardItem(QString("row %0, column %1").arg(row).arg(column));
            model->setItem(row, column, item);
        }
    }
    view->setModel(model);

    MyColumnEditor* editor = new MyColumnEditor();
    Qtitan::GridTableColumn* column = (Qtitan::GridTableColumn *)view->getColumn(0);
    column->setColumnEditor(editor);

    setCentralWidget(m_grid);
}

/* MyColumnEditor */
MyColumnEditor::MyColumnEditor()
    : Qtitan::GridTableColumnEditor()
{
}

QWidget* MyColumnEditor::createEditorWidget(Qtitan::GridColumnBase* column)
{
    Q_UNUSED(column);
    QLineEdit* edit = new QLineEdit();
    connect(edit, SIGNAL(textEdited(const QString &)), this, SLOT(editChanged(const QString &)));
    return edit;
}

void MyColumnEditor::editChanged(const QString &)
{
}

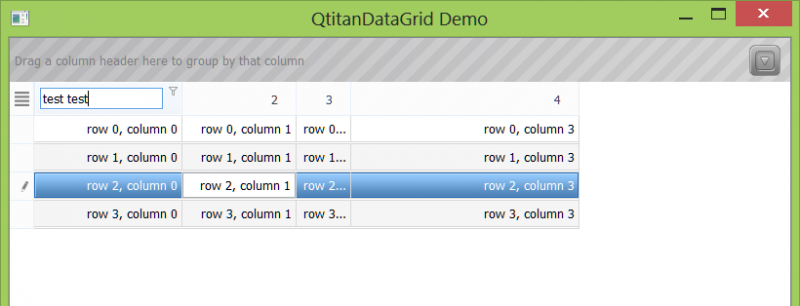

Attachments:
Last edit: 1 year 8 months ago by Developer Machines.

Please Log in or Create an account to join the conversation.

More
1 year 8 months ago - 1 year 8 months ago #4 by Stephanie
Replied by Stephanie on topic Make Grid header editable
Thanks for the reply,
I think you did not understood my question.
I want to make grid header editable on double click of grid header column and set edited value on header column after finishing edit operation.
Please let us know how to do that?
Last edit: 1 year 8 months ago by Stephanie.

Please Log in or Create an account to join the conversation.

More
1 year 8 months ago #5 by Developer Machines
Unfortunately, at the moment there is no such feature (ability to edit header text).

Please Log in or Create an account to join the conversation.

More
1 year 8 months ago - 1 year 8 months ago #6 by Stephanie
Replied by Stephanie on topic Make Grid header editable
Could you please let us know whether this feature is going to available in later releases.
Last edit: 1 year 8 months ago by Stephanie.

Please Log in or Create an account to join the conversation.

More
