Floating windows has an additional title bar partially visible

4 months 2 weeks ago #1 by Kihana
I'm using docking 3.8.0 (built with msvc2019 64 bit) and when my docks are floating the min/max/close buttons are visible above the floating dock's title bar.

I have tried setting my underlying widget with Qt::FramelessWindowHint, but it's still visible. What are the steps to make this invisible?

See attached image.
Attachments:

Please Log in or Create an account to join the conversation.

More
4 months 1 week ago #2 by Developer Machines
Could you attach screenshot what buttons you need to hide and code snippet that you tried?

Please Log in or Create an account to join the conversation.

More
4 months 1 week ago #3 by Kihana
See the original message for the attached screenshot with a red arrow pointing the min/max/close buttons they are cut off but they are visible.

For the underlying dock's widget I used:
setWindowFlags(Qt::Window | Qt::FramelessWindowHint);

Please Log in or Create an account to join the conversation.

More
4 months 1 week ago #4 by Developer Machines
I meant what object are you using to apply this flag and how do you get it - DockMainWindow, DockWindow, DockWidgetPanel?

Please Log in or Create an account to join the conversation.

More
4 months 1 week ago #5 by Kihana
I have a function that passes in the custom QWidget when it is loaded/started. In the constructor of the custom QWidget I'd call setWindowFlags(...).

DockWidgetPanel* panel = nullptr;

panel = m_dockPanelManager->addDockPanel(name, Qtitan::InsideDockPanelArea, nullptr);
panel->setWidget(widget);

Please Log in or Create an account to join the conversation.

More
4 months 6 days ago - 4 months 6 days ago #6 by Developer Machines
DockWidgetPanel it is not a top level window that can holds this flag. As far as i understand the task, you need to customize the titlebar of the dock panel. There is a method for this: DockWidgetPanel::setTitleBar(anyQWidget);

Use the code below to create a custom title bar:
class CustomTitleBar : public QWidget
{
public:
    CustomTitleBar() : QWidget() {
        QHBoxLayout* layout = new QHBoxLayout(this);
        QPushButton* b = new QPushButton();
        b->setText(tr("New Button"));
        layout->addWidget(b, 1, Qt::AlignRight);
        layout->addSpacing(0);
        layout->setContentsMargins(QMargins());
    }

    virtual QSize minimumSizeHint() const
    {
        return QSize(30, 30);
    }
private:
protected:
};

DockWidgetPanel* panel1 = dockPanelManager()->addDockPanel(tr("Panel 1"), Qtitan::LeftDockPanelArea);
QWidget* anyWidget = new CustomTitleBar();
panel1->setTitleBar(anyWidget);

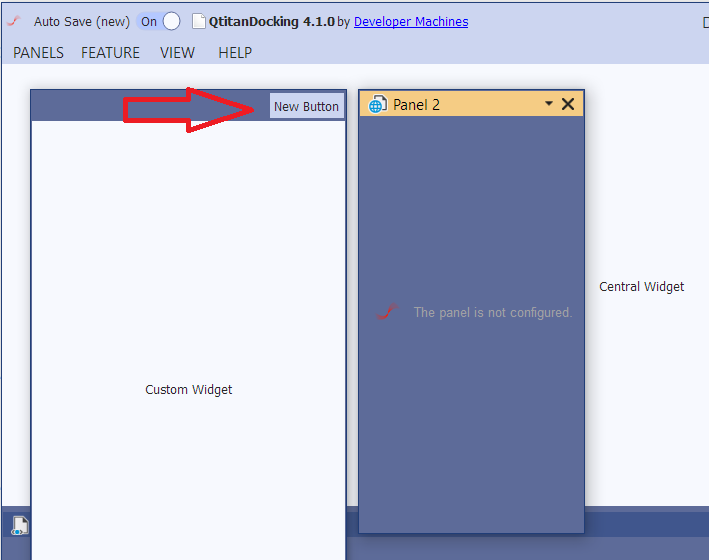

I think it should help.
Attachments:
Last edit: 4 months 6 days ago by Developer Machines.
