use qtitanribbon and qtitandocking

2 years 10 months ago #1 by Shuai Wang
I want to Use the two frameworks of qtitanribbon and qtitandocking in a project. the project base on qtitanribbon , but i also need some function of qtitandocking . could you give me some demos of that? email:66148791@qq.com

Please Log in or Create an account to join the conversation.

More
2 years 10 months ago #2 by Developer Machines
First, please install the latest version on qtitandocking 1.1. Unfortunately. 1.0 version contains the bug that does not allow to use ribbon + docking in the same app.:((

Add docking to RibbonMainWindow:

With the current version of ribbon you have to add the docking as a central widget of the RibbonMainWindow.
void MyRibbonWindow::createWidget()
{
    DockMainWindow* pMainWindow = new DockMainWindow(0, Qt::Widget);
    DockToolBar* tooBar = pMainWindow->addToolBar("My Toolbar", Qtitan::DockBarTop);
    tooBar->addAction("Test_But_1");
    tooBar->addAction("Test_But_2");
    tooBar->addAction("Test_But_3");
    DockWidgetPanel* dockPanel1 = pMainWindow->addDockPanel("My Panel 1", QSize(200, 50), Qt::LeftDockWidgetArea);
    DockWidgetPanel* dockPanel2 = pMainWindow->addDockPanel("My Panel 2", QSize(200, 50), Qt::BottomDockWidgetArea, dockPanel1);
    dockPanel2->setWidget(new QTextEdit);
    setCentralWidget(pMainWindow);
}

In QtitanRibbon version 5 will be possible to add the docking to RibbonMainWindow like for common QWidget.

Please Log in or Create an account to join the conversation.

More
2 years 10 months ago - 2 years 10 months ago #3 by Developer Machines

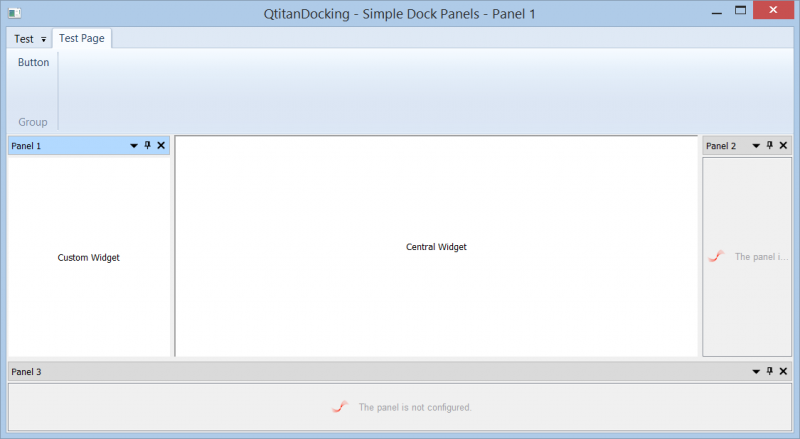

Other way is to add the ribbon ui to DockMainWindow:
class MyDockWindow: public DockMainWindow
{
......
};

void MyDockWindow::createRibbonUI()
{
    qApp->setStyle(new RibbonStyle);
    RibbonBar* bar = new RibbonBar();
    bar->setTitleBarVisible(false);
    bar->quickAccessBar()->addAction("Test");
    bar->quickAccessBar()->setVisible(true);
    RibbonPage* page = bar->addPage("Test Page");
    RibbonGroup* group = page->addGroup("Group");
    group->addAction(QIcon(), "Button", Qt::ToolButtonTextOnly);
    this->setMenuBar(bar);
}

Attachments:
Last edit: 2 years 10 months ago by Developer Machines.
